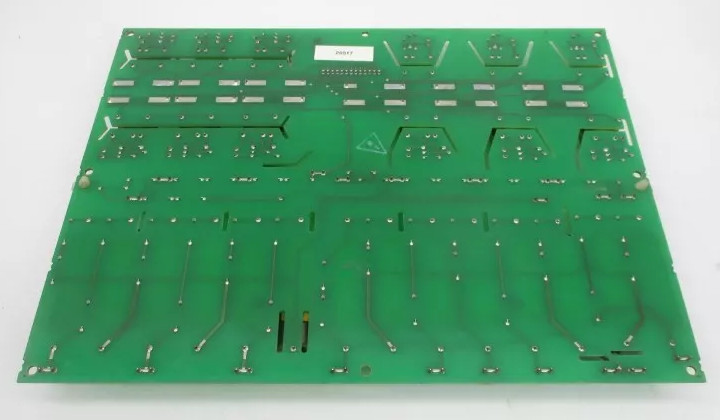

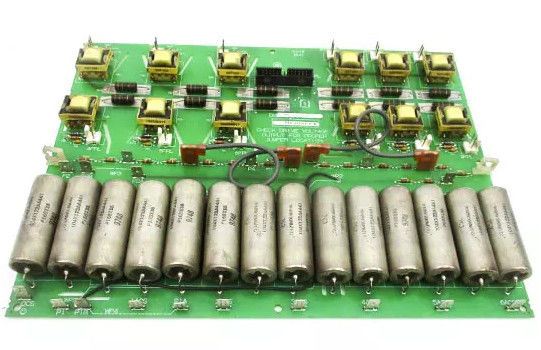

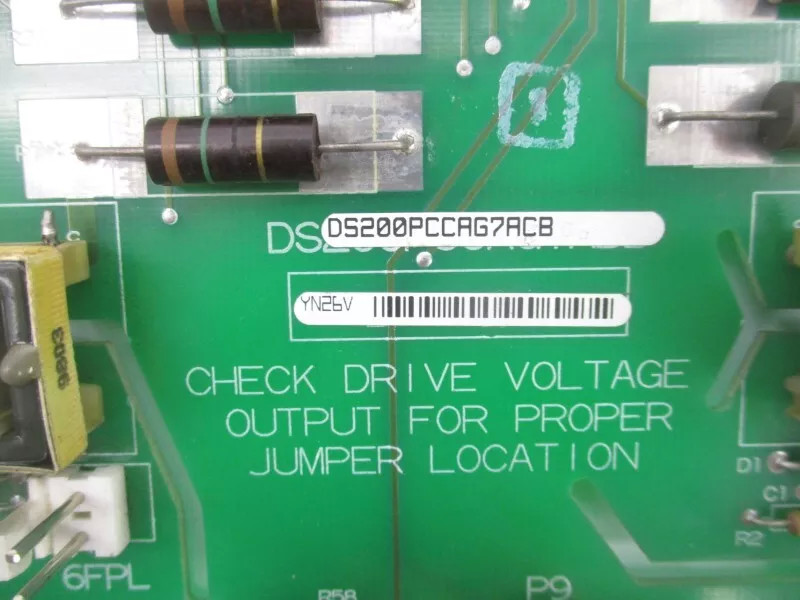

GE Mark V DS200PCCAG7A Power Connect Card for Precise Turbine Control Operation

Product Description:

General Electric has designed and manufactured a Power Connect Card known as DS200PCCAG7A, which is a part of the EX2000 series used in GE Excitation Control Systems. This useful card plays a vital role in connecting the drive's control circuitry to the SCR power bridge, and it is known as the DS200PCCA Power Connect Card (PCCA).

By integrating the control circuitry and power bridge, the DS200PCCA Power Connect Card allows for the smooth functioning of GE excitation control systems. Additionally, it is responsible for interfacing the drive's control circuitry and the power bridge by effectively connecting the two together.

In conclusion, the DS200PCCAG7A Power Connect Card is a vital component for the proper functioning of GE excitation control systems. Its unique design and advanced features make it an indispensable tool for connecting the control circuitry and the SCR power bridge.

Features:

The PCCA board is divided into ten group numbers, which are determined by various factors including the system voltage, frame size and power conversion type. Specifically, whether a system uses regenerative or non-regenerative power conversion plays a key role in determining the group number used.

Understanding these group numbers is important in ensuring proper performance and operation of the PCCA board. It’s important to note that selecting the right group number for a particular system can greatly impact its efficiency and effectiveness.

Technical Parameters:

This product is a part of the GE Turbine Control System and can be used as a GE Turbine Control Instrument or Module.

Applications:

The GE Turbine Control System is widely used in various applications, such as power generation, oil and gas, and marine propulsion. The GE Mark V DS200PCCAG7A POWER CONNECT CARD is specifically designed to be used in gas turbines, and it is compatible with various GE turbine models.
