8C-PDODA1 51454472-175 Honeywell Digital Output Module
| Place of Origin | USA |
|---|---|
| Brand Name | Honeywell |
| Model Number | 8C-PDODA1 |
| Minimum Order Quantity | 1pc |
| Price | $800 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 8C-PDODA1 51454472-175 Honeywell Digital Output Module | Product ID | 51454472-175 |
|---|---|---|---|
| Product Type | HART Analog Output Module | MPN | 51405039-176 |
| Condition | New | Warranty | 1 Year |
| Highlight | 8C-PDODA1 Honeywell Digital Output Module,Honeywell Digital Output Module,51454472-175 Honeywell Digital Output Module |
||
Product Description

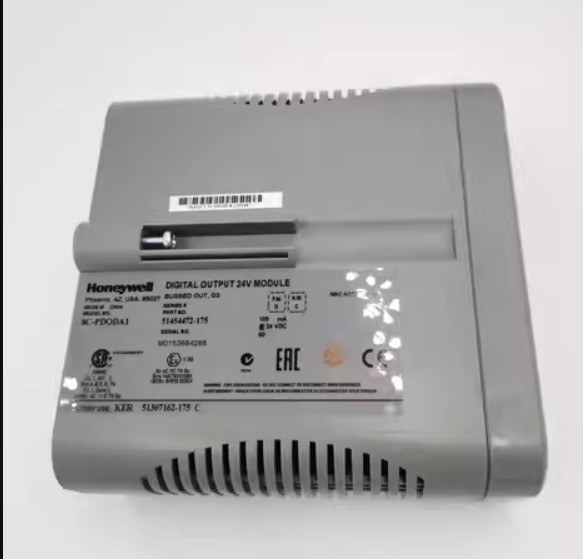

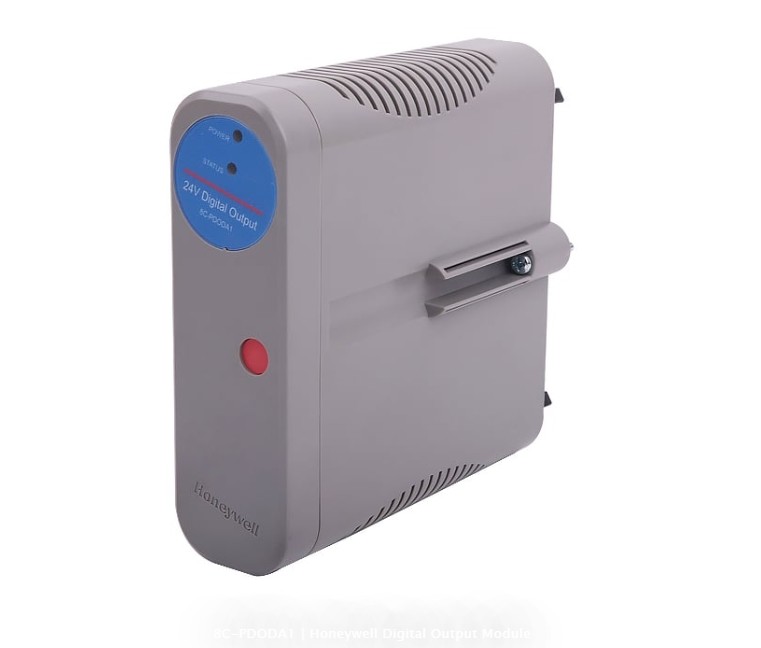

8C-PDODA1 51454472-175 Honeywell Digital Output Module
Product Details:
The Honeywell 8C-PDODA1 is a 32-channel digital output module with field isolated, bussed output. It is part of the Honeywell Experion LX distributed control system (DCS) Series 8 I/O family. The 8C-PDODA1 is a coated module, which means that it has a conformal coating applied to the electronics circuitry to protect it from moisture, dust, chemicals, and temperature extremes.
- Output Channels: 32
- Output Type: Source
- Voltage Rating: 24 VDC
- Module Current Rating: 105 mA
- Load Voltage: 30 VDC Maximum
- Module Removal and Insertion: Under Power Supported
- Temperature:Operating Temperature: 0 to 60 ℃ Storage Temperature: -40 to 85 ℃
- Load Current:Short circuit protection for DO channel using series fuses in the output channel. One fuse per eight channels, totaling four fuses for 32 channels on DO IOTA. 100 mA per channel (Max)
- Galvanic Isolation:1000 VAC RMS for system-to-field isolation for user-supplied field power only. No system-to-field isolation for internal system power used for field sensing.
- On-State Voltage: 24 VDC (typ) (load current @ 0.1A max)
- Off-State Voltage: 0 VDC
- Off-State Leak Current: 5 µA (max)
- Turn-On/Turn-Off Time: 10 ms (max)
- Gap (0 Current) of Output to Field on Switchover: None (0 ms) (applies to redundancy only)
| CC-TAIX11 51308365-175 |
| CC-TDOB11 51308373-175 |
| CC-TDIL01 51308386-175 |
| CC-TAIM01 51305959-175 |
| CC-TAIX01 51308363-175 |
| CC-TCF901 51308301-175 |
| CC-TDOB01 51308371-175 |
| CC-TAOX11 51308353-175 |
